JD40 Mk.II

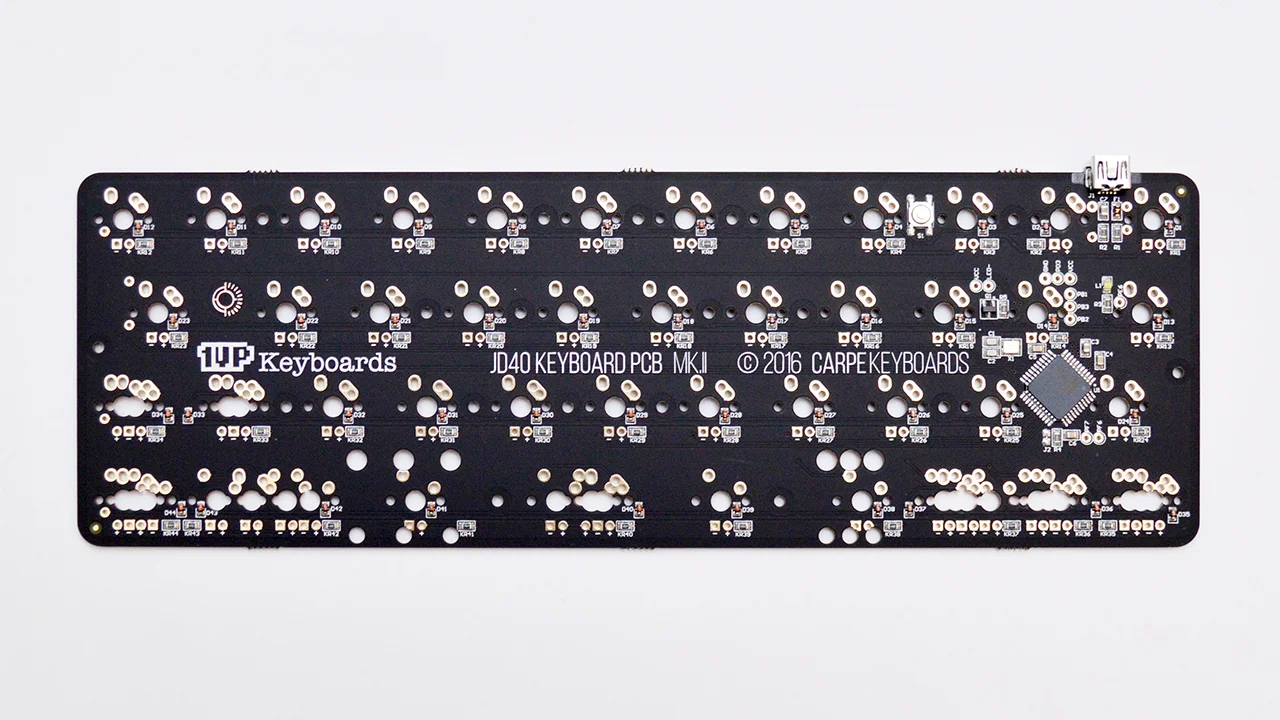

In collaboration with JD Carpe/Carpe Keyboards, the JD40 Mk.II is a redesigned PCB based on JD Carpe’s original JD40 PCB which utilized a separate microcontroller. It features Cherry MX/Alps footprints with many layout options. Parallel switch LED backlight control, USB Mini.

JD40 key layout design: JD Carpe/Carpe Keyboards

PCB and case design: Wilba

Vendors: Originative and 1Up Keyboards
